In commercial buildings across the Lower Mainland, aluminum entry doors are one of the most frequently used—and most frequently failing—components. Many of these doors rely on traditional pivot hinges, which often lead to sagging, misalignment, and costly service calls.
Upgrading to an SL57 continuous hinge offers a long-term solution that improves performance, reduces maintenance, and extends the life of both the door and frame.

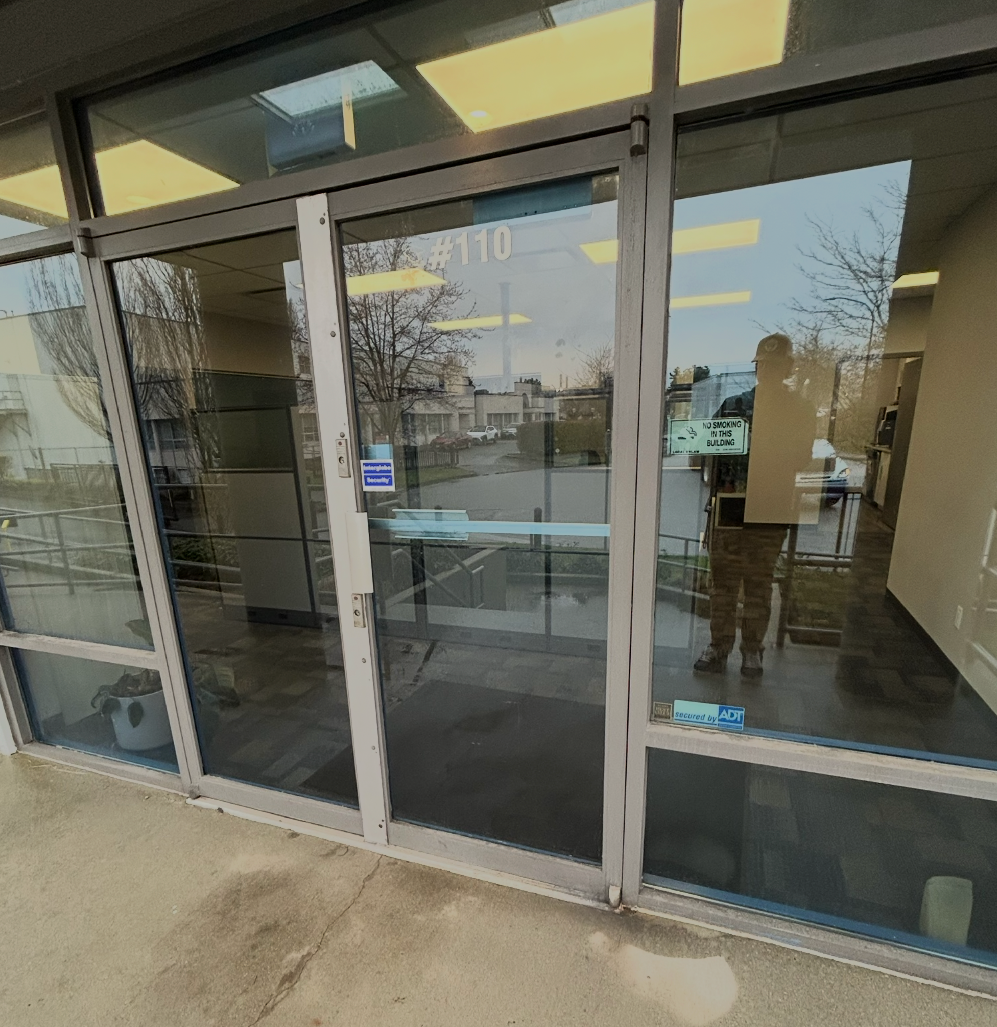

The Problem with Pivot Hinges on Aluminum Entry Doors
Pivot hinges are commonly used in aluminum storefront doors because they are simple and cost-effective upfront. However, they come with several long-term issues:
- Concentrated stress points at the top and bottom of the door
- Sagging and misalignment over time
- Increased wear on door closers and locks
- Frequent service calls and adjustments
- Premature failure of doors and frames
Because pivot hinges support the entire door weight at just two points, the door and frame are constantly under strain—especially in high-traffic environments.

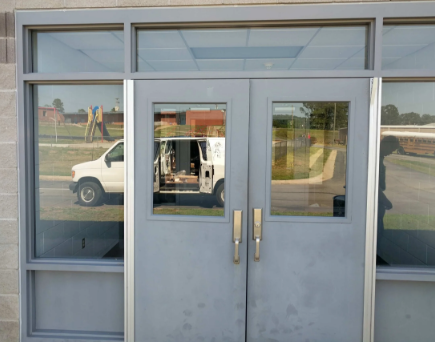

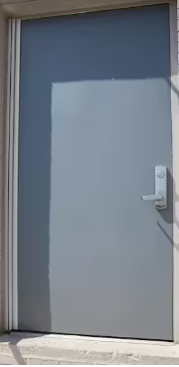

What Is an SL57 Continuous Hinge?
The SL57 is a full-surface geared continuous hinge that runs the entire height of the door. Instead of relying on two or three pivot points, it distributes the load evenly from top to bottom.
This design uses intermeshing gears and multiple fasteners along the full length of the door, allowing for smooth, consistent operation even under heavy use.
1. Eliminates Door Sagging and Misalignment
With pivot hinges, the door weight is concentrated at the top and bottom. Over time, this causes:
- Frame distortion
- Door sag
- Latching issues
The SL57 solves this by distributing the door’s weight across the entire hinge length, significantly reducing stress on any single point.
Result: Doors stay aligned, latch properly, and operate smoothly for years.
2. Dramatically Reduces Maintenance Costs
Pivot-hung doors require ongoing maintenance:
- Adjusting pivots
- Replacing worn components
- Fixing door sag or dragging
The SL57 is designed to eliminate these issues:
- Lifetime lubrication means no ongoing servicing
- Precision manufacturing ensures consistent alignment
- Durable aluminum construction resists wear and corrosion
Many geared continuous hinges are tested to 25 million cycles, equivalent to decades of high-traffic use without failure.
Result: Fewer service calls and lower long-term operating costs.
3. Increased Door and Frame Lifespan
When pivot hinges fail, the damage often extends beyond the hinge itself:
- Cracked aluminum door rails
- Worn pivot pockets
- Frame reinforcement failure
Continuous hinges reduce this risk by spreading forces evenly and eliminating point-loading.
Result:
- Doors last longer
- Frames remain intact
- Costly replacements are avoided
4. Improved Security and Tamper Resistance
Pivot hinges can be vulnerable:
- Exposed hardware
- Easier forced entry points
- Wear that leads to loose or unstable doors
The SL57 offers:
- Tamper-resistant design
- Full-length attachment for added strength
- More secure door-to-frame connection
Result: Stronger, more secure entryways—especially important for commercial properties.
5. Ideal for High-Traffic Commercial Applications
Continuous hinges like the SL57 are specifically designed for:
- Schools
- Office buildings
- Retail storefronts
- Hospitals and public buildings
They are engineered for high-frequency use and heavy doors, with load ratings up to 600 lbs depending on configuration.
Result: Reliable performance even in demanding environments.
6. Retrofit-Friendly (No Need to Replace Doors)
One of the biggest advantages for property managers and contractors:
- SL57 hinges can be installed on existing aluminum doors and frames
- No need for full door replacement
- Minimal disruption to tenants or operations
Result: Cost-effective upgrade with immediate performance improvement.
7. Smoother, Quieter Door Operation
The geared design allows for:
- Even movement across the full door height
- Reduced friction
- Quiet operation
This is especially valuable in:
- Offices
- Medical facilities
- Residential towers
Result: A more professional and user-friendly entry experience.
When Should You Replace Pivot Hinges?
If your aluminum entry door has:
- Sagging or dragging
- Difficulty latching
- Frequent service calls
- Visible wear at the top or bottom pivots
…it’s time to consider upgrading to a continuous hinge solution.
Final Thoughts
Switching from pivot hinges to an SL57 continuous hinge is not just a hardware upgrade—it’s a long-term investment in performance, durability, and cost savings.
For commercial properties in Vancouver and the Lower Mainland, this upgrade:
- Eliminates chronic door issues
- Reduces maintenance budgets
- Extends the life of your doors and frames
- Improves security and user experience
